HTRC C6X2 Dual RC Battery Charger

Safety Information

Always prioritize safety when operating the charger. Improper use can lead to fire, injury, or property damage.

• Never leave charging batteries unattended.
• Ensure the correct battery type and cell count are selected before charging.

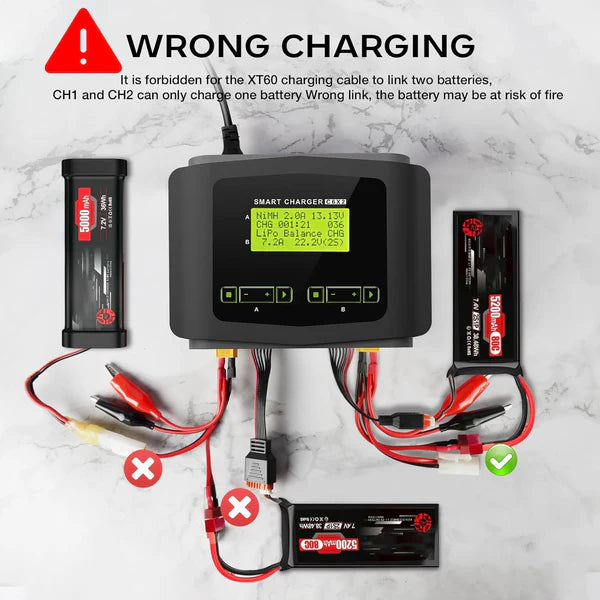

• Do not charge two different batteries on the same channel simultaneously. Each channel is designed for one battery at a time.
• Avoid using the AC power cable and DC cable simultaneously.
• Charge batteries in a fire-safe area, away from flammable materials.
• Do not attempt to charge damaged or swollen batteries.
• Keep the charger away from water, moisture, and extreme temperatures.
• Ensure proper ventilation around the charger during operation.




• Product Features and Overview

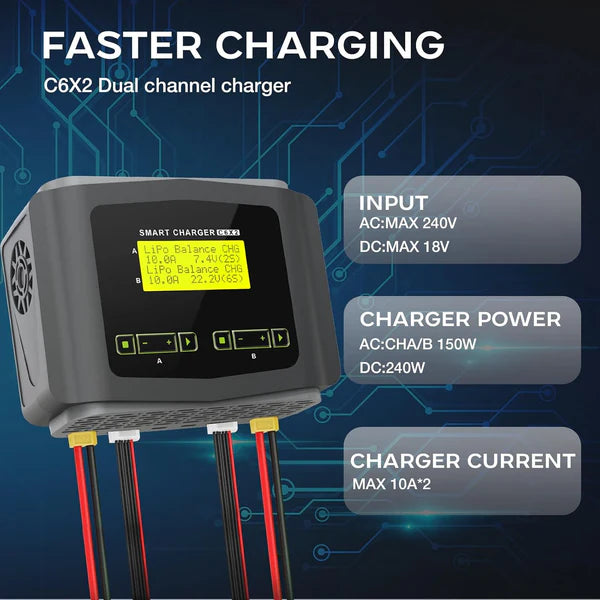

  The HTRC C6X2 is a high-performance dual-channel charger designed for a wide array of RC battery types.



  • Dual Channel Charging: Capable of charging two batteries independently and simultaneously.
  • Wide Battery Compatibility: Supports 1-6S LiPo, LiHV, Li-ion, LiFe; 1-15S NiCD, NiMH; and 2-20V PB Smart Batteries.
  • Multiple Charging Modes: Includes Charge, Balance Charge, Discharge, and Storage modes.
  • Large Screen Display: Provides clear, easy-to-read information for monitoring and setting parameters.
  • Load Memory Function: Stores up to 20 different battery profiles for quick recall and charging.
  • Automatic Cell Count Detection: Features an “AUTO” function to automatically identify the cell count during charging or discharging.
  • Safety Features: Automatic stop upon full charge, capacity cut-off, and safety timer




  • Setup and Connection

    Follow these steps to set up your HTRC C6X2 charger:

    1. Power Connection: Plug the AC power cable into the charger’s AC input port and then into a wall outlet. Alternatively, for DC input, connect the DC cable to a compatible 11-18V DC power source. Do not use both AC and DC inputs simultaneously.
    2. Battery Connection:

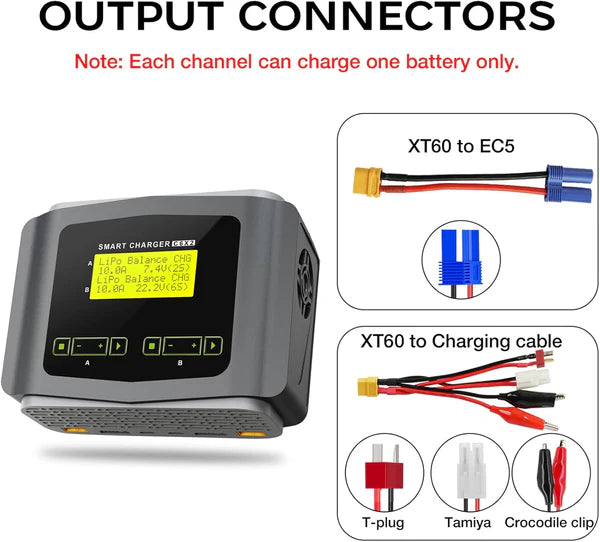

       • Connect the main plug of your battery to the corresponding output port on the charger (Channel A or Channel B).
       • Connect the balance extension cord from your battery’s balance port to the charger’s balance port, ensuring correct polarity (from right to left, as indicated on the charger).

       Advertisements

    3. Power On: Turn on the charger using the power switch. The large screen will illuminate.

    Operating Instructions

    The HTRC C6X2 features an intuitive interface for easy operation.

    1. Select Battery Type: On the main screen, use the navigation buttons to select the appropriate battery chemistry (e.g., LiPo, NiMH) for the connected battery.
    2. Choose Mode: Select the desired operation mode (Charge, Balance Charge, Discharge, Storage). For most LiPo batteries, “Balance Charge” is recommended.
    3. Adjust Parameters: Set the charging current (Amps) and voltage (Volts) according to your battery’s specifications. The charger can automatically detect cell count.
    4. Start Process: Confirm your settings and initiate the charging/discharging process. The screen will display real-time information such as current, voltage, and elapsed time.
    5. Monitor Progress: Periodically check the charger’s display to monitor the battery’s status. The charger will automatically stop when the battery is fully charged or the process is complete.
    6. Load Memory Function: To use a saved profile, navigate to the memory function, select the desired data, and execute the process directly without manual setting



    Maintenance

    Proper maintenance ensures the longevity and optimal performance of your charger.

    • Cleaning: Use a soft, dry cloth to clean the charger’s exterior. Do not use liquid cleaners or solvents.
    • Storage: Store the charger in a cool, dry place away from direct sunlight and extreme temperatures when not in use.
    • Cable Inspection: Regularly inspect all cables and connectors for signs of wear, damage, or corrosion. Replace any damaged cables immediately.
    • Ventilation: Ensure the charger’s ventilation openings are clear of dust and debris to prevent overheating.

    Troubleshooting

    If you encounter issues with your HTRC C6X2 charger, refer to the following common problems and solutions:

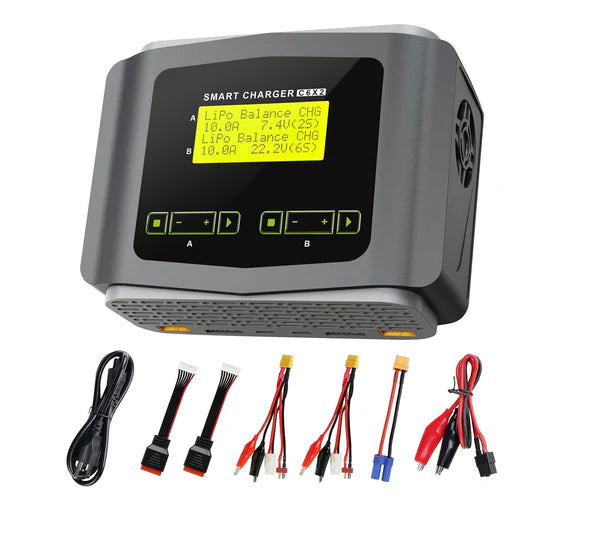

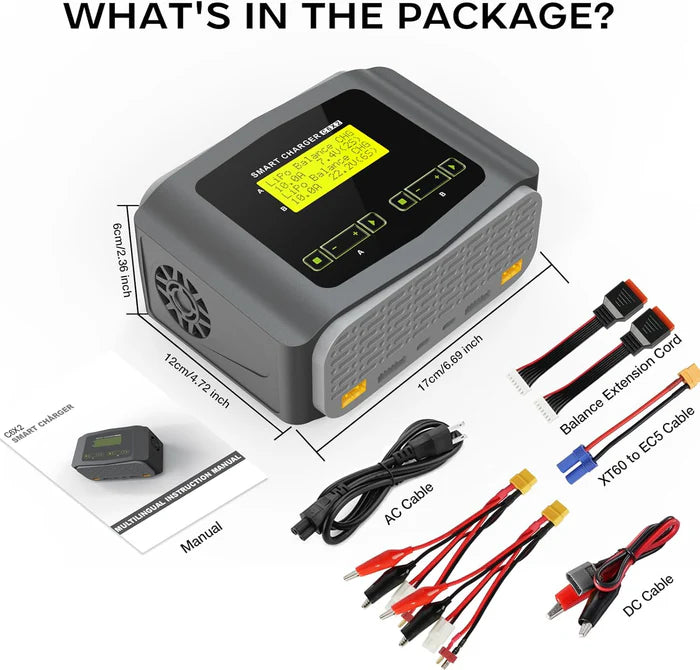

    Package include:-

    • One (1) HTRC C6X2 RC Battery Charger
    • One (1) AC Power Cable
    • One (1) DC Power Cable
    • Two (2) 3-in-1 Convert Cables to XT60 Plugs
    • One (1) XT60 to EC5 Cable
    • Two (2) Balance Extension Cords
    • One (1) Instruction Manual
