Traxxas 1/10 Maxx WideMaxx 4s 4WD Truck

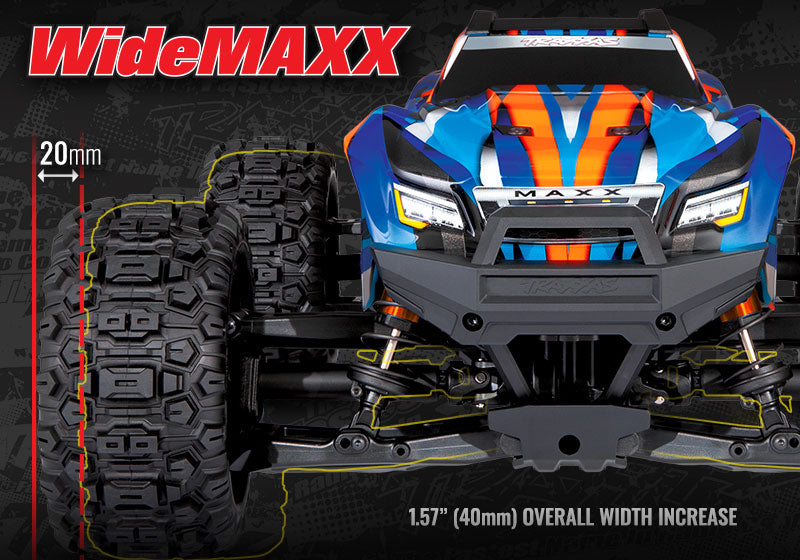

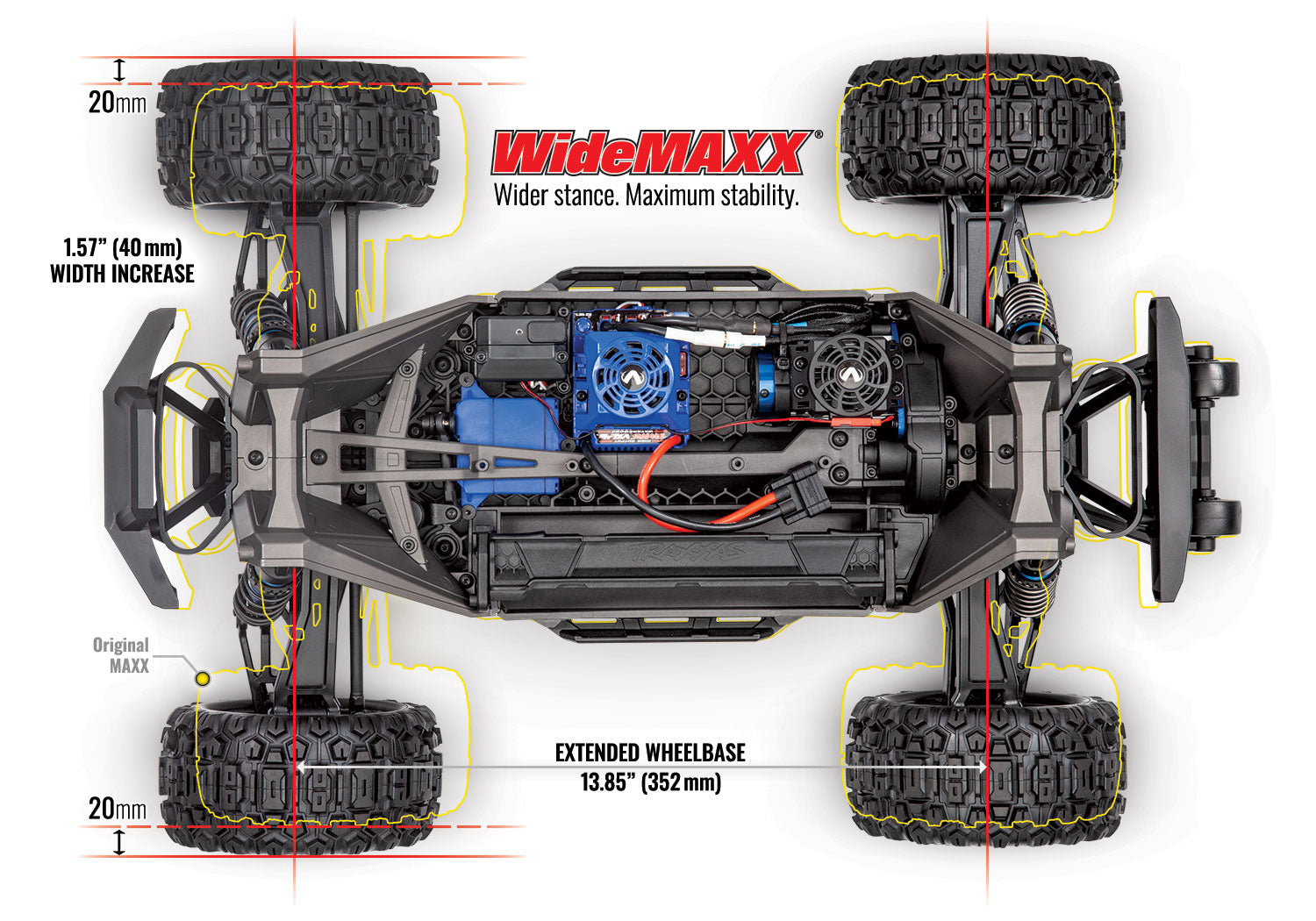

WIDEMAXX® FROM THE START

WideMaxx stance stretches the wheels out over 1.5 inches (40 mm) wider for even greater stability.

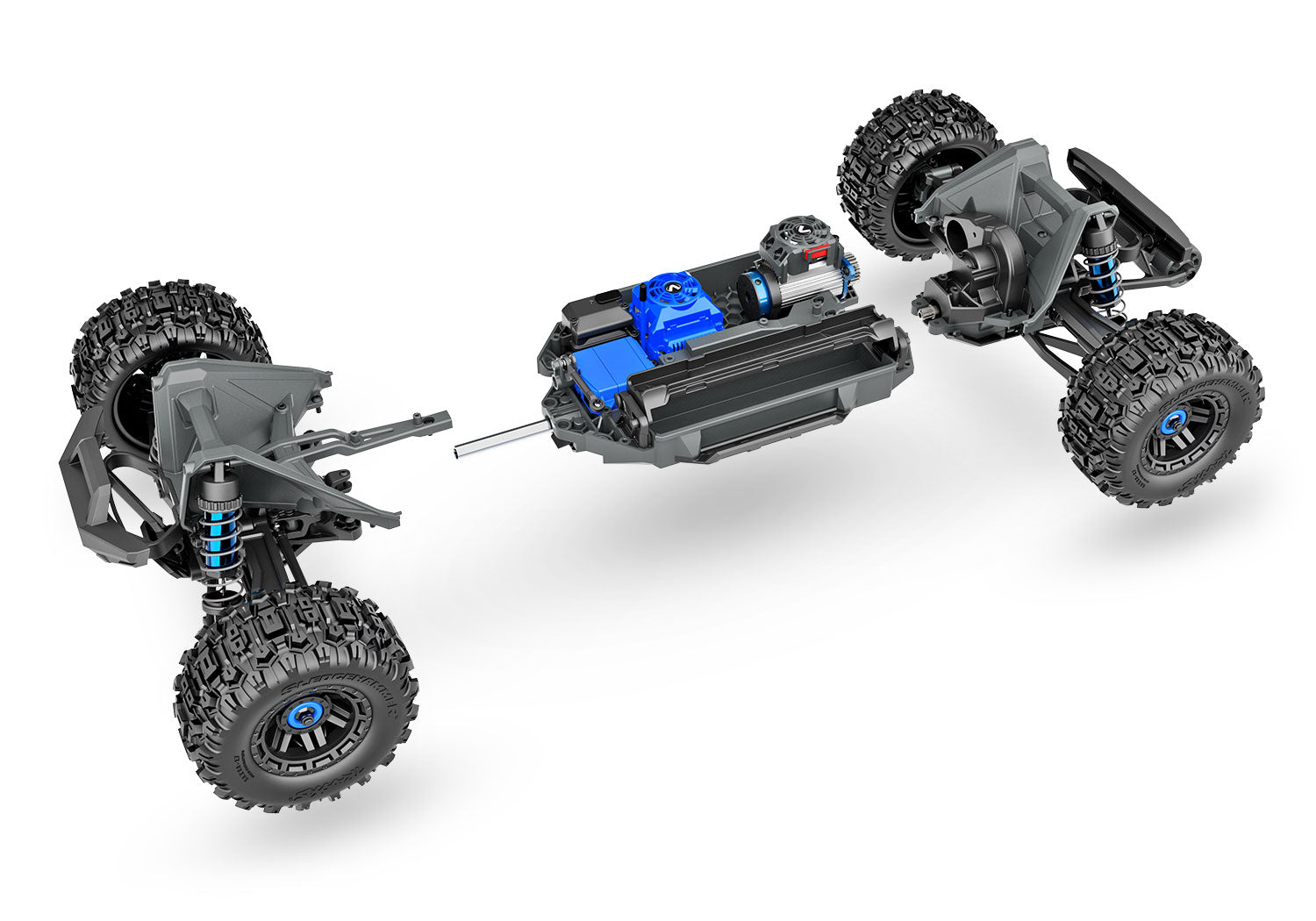

LONGER CHASSIS

The extended chassis length now accommodates our most powerful batteries, the same 6700 mAh 4-cell LiPo batteries used in the X-Maxx.

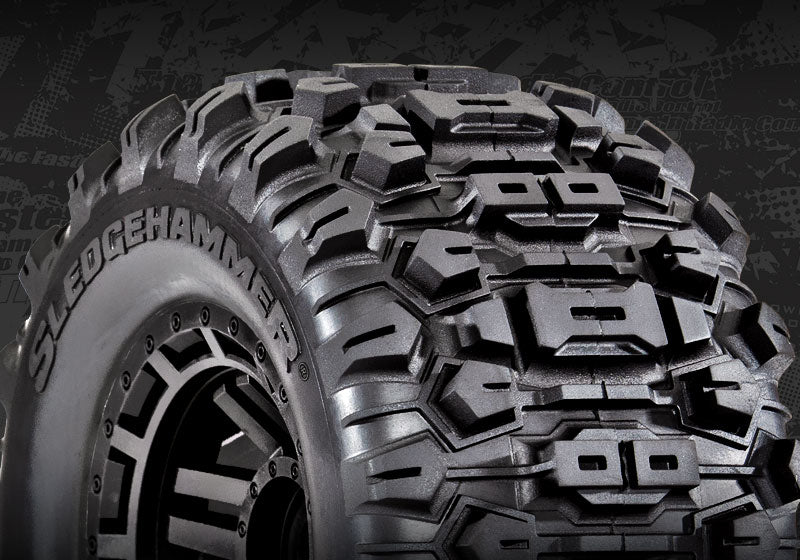

SLEDGEHAMMER® TIRES

Taller Sledgehammer tires feature an aggressive open-block tread design that clears away mud and debris for unrivaled traction.

THE MAXX EXPERIENCE

Maxx turns up the dial on fun with even more of what you crave. Maxx doubles down on strength and durability with a longer and wider stance for greater stability to match its blistering 60+ mph performance. Bury the throttle, fly through corners, and let Maxx turn your wildest full-throttle dreams into reality.

60+ MPH MAXX® MUSCLE

Traxxas Velineon® brushless power hits hard with massive 4s punch for an awe-inspiring 60+ mph top speed and effortless wheelies on demand. The high-output 540XL motor features a beefy 5 mm shaft, aluminum heat sink, and a powerful fan. Of course it’s all fully protected with Traxxas’ innovative waterproofing.

TRAXXAS TOUGH™

Maxx is overbuilt with components found on much larger and heavier vehicles to withstand extreme punishment and intense driving action. The Maxx chassis absorbs and dissipates impact energy across the entire structure for superior strength. Huge threaded-aluminum GT-Maxx shocks with oversized shafts soak up massive jumps for high-flying fun at every turn.

Specifications:

Length: 22.50 inches (572 mm)
Front Track: 15.95 inches (405 mm)
Rear Track: 15.95 inches (405 mm)
Ground Clearance (lowest skid): 1.90 inches (49 mm)
Ground Clearance (center skid): 2.6 inches (67 mm)
Weight: 10.40 pounds (4.7 kg)
Height (ride): 9.12 inches (232 mm)
Wheelbase: 13.85 inches (352 mm)
Shock Length: 4.90 inches (124 mm)
Tire Diameter: 5.64 inches (143 mm)
Wheel Diameter: 2.8 / 3.6 inches (70 / 92 mm)
Speed Control: Velineon VXL-4s
Motor (electric): 540XL (2400 kV)
Transmission: Single-speed
Overall Drive Ratio: 12.37 (23/50 motor pinion and spur gear)
Differential Type: Sealed, hardened steel bevel, limited slip
Gear Pitch: Module 1.0
Chassis Structure/Material: Composite modular tub
Brake Type: Electronic
Drive System: Shaft-driven 4WD
Steering: Double-shear bellcrank
Wheels & Tires: 2.8″ wheels, pre-glued Sledgehammer® Tires & foam inserts; 5.6×2.8–3.6
Radio System: 2-Channel, TQi™ 2.4 GHz Transmitter with TSM® receiver
Servo: Torque: 285 oz-in.
Top Speed: 60+ MPH with 4s LiPo battery and optional gearing (sold separately)
Skill Level: 4
Battery Tray: 186 mm L x 48 mm W x 43 mm H
Required Batteries: 4 “AA” (transmitter)
